TPG e-Line

TPG's e-Line is a highly transparent point-to-point Ethernet service, designed to link office locations or head offices with data centres or major facilities. This product provides complete flexibility for redundancy, resiliency and reliability.

TPG's point-to-point and point-to-multipoint offerings - connecting 2 or more geographic sites in a hub-and-spoke configuration - enables fast, secure and scalable Ethernet connectivity. The service allows for the efficient carriage of bulk data transfer such as SAN Replication and WAN back up.

Benefits

Lock

Secure

Each connection is given a unique encapsulation ID to create an ePipe that encapsulates all data and runs across TPG's private backbone.
Network

Protocol transparency

Full transparency for any Layer 3 protocols to offer complete flexibility and legacy support.
Data

Jumbo frames

Increased efficiency and reduced fragmentation with frames that carry up to 4 times more payload data.
Specifications
Configuration Point-to-point or point-to-multipoint
Transport Technology MPLS Core with various Access technologies/clear transmission
Access Networks TPG Fibre (Fibre400/1000)
TPG Ethernet
NBN
Other Third Party access
Bandwidth 2Mbps-10Gbps
Flexible bandwidth options available ranging up to 10Gbps
MPLS CoS Options Standard: best effort delivery
Business: assured delivery
Carrier: expedited forwarding with end-to-end latency, jitter and packet loss performance contract
Ethernet Frame Size (MTU)1 Business and Carrier:
   Fast Ethernet interfaces: 1531 bytes
   Gigabit Ethernet interfaces: 8960 bytes
   10 Gigabit Ethernet interfaces: 8960 bytes
   Standard: 1526 bytes
VLAN Transparency1 Business and Carrier: customer VLANs are supported transparently2
Standard: some limitations apply, contact TPG
Protocol Transparency1 & 3 Business and Carrier: Layer 2/3 supported transparently2
Standard: some limitations apply, contact TPG
QoS Transparency TPG does not adhere to, nor modify customer assigned priority bits (802.1p/DSCP)
Site Requirements Rack space (1RU) and 240V AC 50Hz power to be provided by the customer
Reporting Access Availability and Performance Reporting Carrier: Access availability and performance reporting, RFC2544 compliance test report at service handover
Business: Access availability and performance reporting
Standard: some limitations apply, contact TPG
Contract Terms Minimum contract term is 12 months. Longer contract terms (e.g. 24 months, 36 months
and longer) are available and attract term discounts.
Provisioning Targets TPG On-Net Infrastructure: 4-7 weeks from Date of Order Acceptance
MEF Certification MEF 2.0

1 Access network dependant
2 Where delivered via Ethernet Trunk Access the customer's equipment must support VLAN stacking
3 Where delivered via Ethernet Trunk Access the customer must tunnel Layer 2 control protocols

How it works

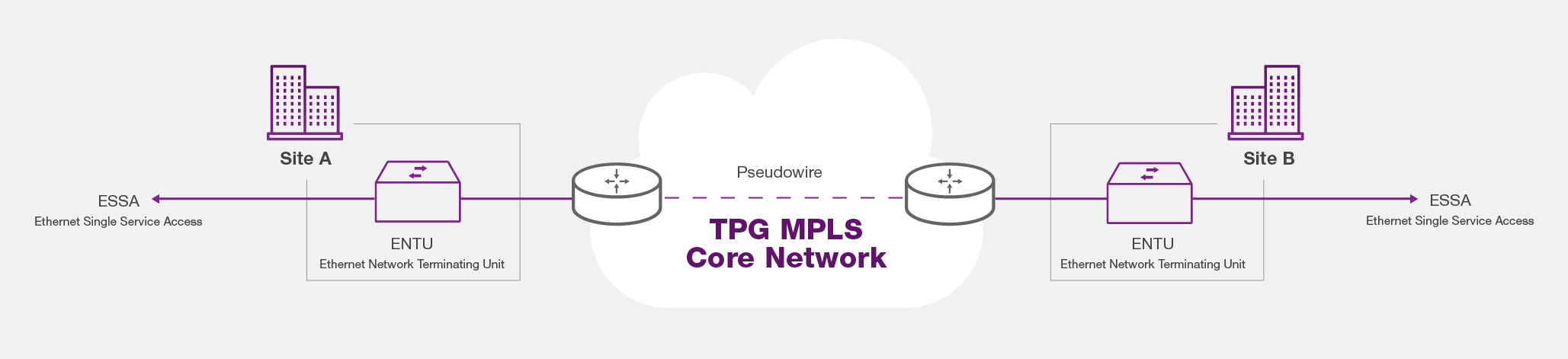

How it works diagram
